PCB Assembly Cost: A Comprehensive Guide for Cost-Effective PCB Manufacturing

In today's competitive electronics manufacturing landscape, understanding PCB assembly costs is paramount for businesses to thrive. This comprehensive guide delves into the factors affecting PCB assembly pricing, including board complexity, component types, assembly technologies, order quantities, and turnaround times. By mastering these cost considerations, manufacturers can optimize budgets, make informed decisions, and gain a competitive edge. Additionally, choosing the right PCB assembly partner is crucial, and JHYPCB emerges as a trusted and cost-effective solution provider.

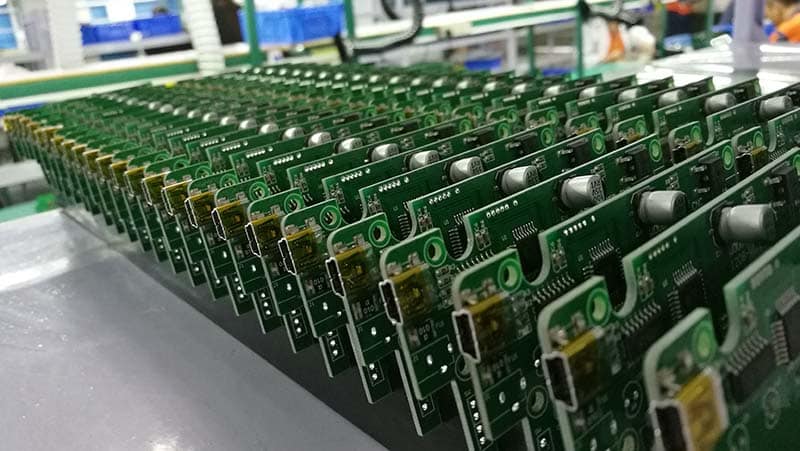

How Much Does PCB Assembly Cost

In today’s highly competitive electronics manufacturing landscape, cost-effective production is paramount for businesses to thrive. One crucial aspect that significantly impacts the overall manufacturing cost is the PCB assembly process. Understanding the factors that influence PCB assembly costs can empower companies to make informed decisions, optimize their budgets, and stay ahead of the competition.

This comprehensive guide aims to shed light on the intricate world of PCB assembly costs, providing valuable insights for engineers, product developers, and business owners alike. Whether you’re a seasoned professional or just starting your journey in the electronics industry, this article will equip you with the knowledge necessary to navigate the cost considerations of PCB assembly effectively.

By delving into the various aspects that contribute to the overall PCB assembly cost, you’ll gain a deeper understanding of how to strike the right balance between quality, lead times, and expenses. From PCB board complexity and component types to assembly technologies and order quantities, this guide will unravel the interplay of these factors, enabling you to make well-informed choices for your upcoming projects.

Ultimately, mastering the art of PCB assembly cost optimization can translate into significant savings, increased profitability, and a competitive edge in the ever-evolving electronics market. So, let’s embark on this journey together, exploring the nuances of PCB assembly costs and unlocking the secrets to cost-effective PCB manufacturing.

Table of Contents

What is PCB Assembly?

At the heart of every electronic device lies a printed circuit board, an intricate network of conductive pathways that interconnect various electronic components. The PCB assembly process is a crucial step in transforming these bare boards into fully functional products, ready for integration into a vast array of applications.

PCB assembly involves mounting and interconnecting a myriad of electronic components, such as resistors, capacitors, integrated circuits (ICs), and connectors, onto the bare PCB. This process is typically divided into two main categories: surface mount technology (SMT) and through-hole technology.

Surface Mount Technology Assembly

SMT assembly is the predominant method used in modern electronics manufacturing. In this process, components are mounted directly onto the surface of the PCB, with their leads or terminations soldered to the corresponding pads on the board. SMT components are typically smaller and more compact, enabling higher component densities and miniaturization of electronic devices.

The SMT assembly process typically involves four basic steps:

  1. Solder paste printing: The bare PCB is prepared by applying solder paste onto the designated pads using a stencil or printer.
  2. Component placement: A pick-and-place machine precisely picks up the required SMT components and places them onto the solder paste deposits on the PCB.
  3. Reflow soldering: The assembled PCB board goes through a reflow oven, where it is heated to a temperature that allows the solder paste to melt and form solid electrical connections (solder joints) between the components and the board.
  4. Inspection: Automated optical inspection (AOI) and other quality control measures are conducted at various stages throughout the SMT process to ensure accurate component placement, proper solder joint formation, and overall assembly integrity.

By following this highly automated process, SMT assembly enables efficient and precise mounting of even the smallest surface-mount components, making it ideal for high-density and miniaturized designs. Rigorous inspection steps are incorporated to maintain stringent quality standards.

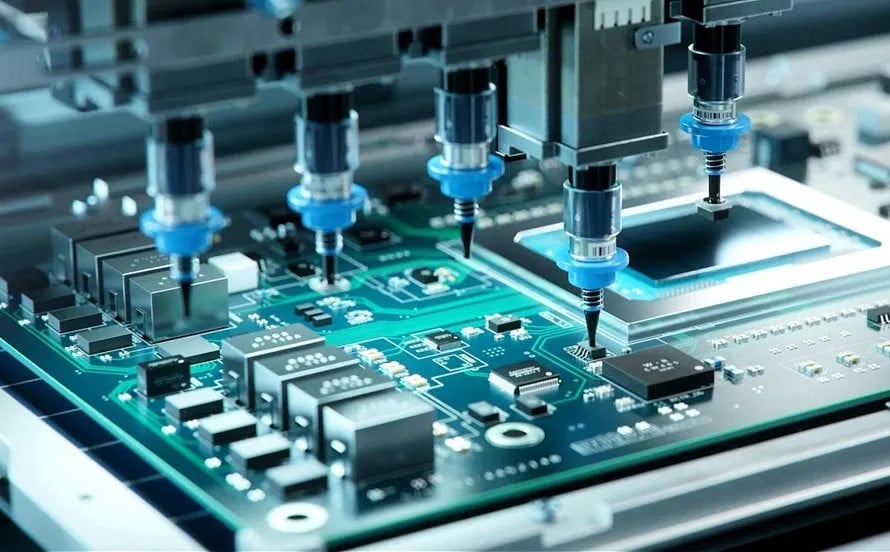

SMT PCB Assembly
SMT PCB Assembly

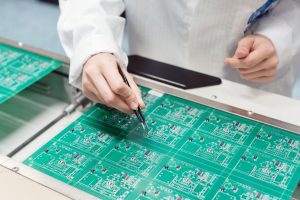

Through-Hole Technology Assembly

While SMT has become the industry standard, through-hole technology assembly still plays a role in certain applications. In this method, components have lead wires that pass through pre-drilled holes in the PCB. These leads are then soldered to the board’s pads on the opposite side, securing the components in place. Through-hole components are generally larger and more suitable for applications requiring robust mechanical connections or higher power handling capabilities.

THT assembly can be semi-automated or fully automated, depending on the production requirements. The THT process typically includes the following steps:

  1. Hole preparation: Precise holes are drilled into the PCB, with diameters tailored to accommodate the component leads correctly.
  2. Component insertion: Components are inserted into the drilled holes, either manually or using automated insertion machines, ensuring proper lead alignment.
  3. Soldering: The assembly undergoes a soldering process, such as wave soldering, which secures the component leads firmly to the PCB pads, creating robust electrical and mechanical connections.
  4. Inspection: Consistent inspections are performed throughout the THT process, including visual checks and functional testing, to ensure the board meets design specifications and functions as expected.

Quality control measures are integrated into the THT assembly workflow to maintain stringent standards and identify any potential issues or defects early on.

While THT assembly may be more labor-intensive and suitable for lower production volumes compared to SMT, it remains an essential process for certain applications, particularly those requiring high-power or mechanically robust component connections.

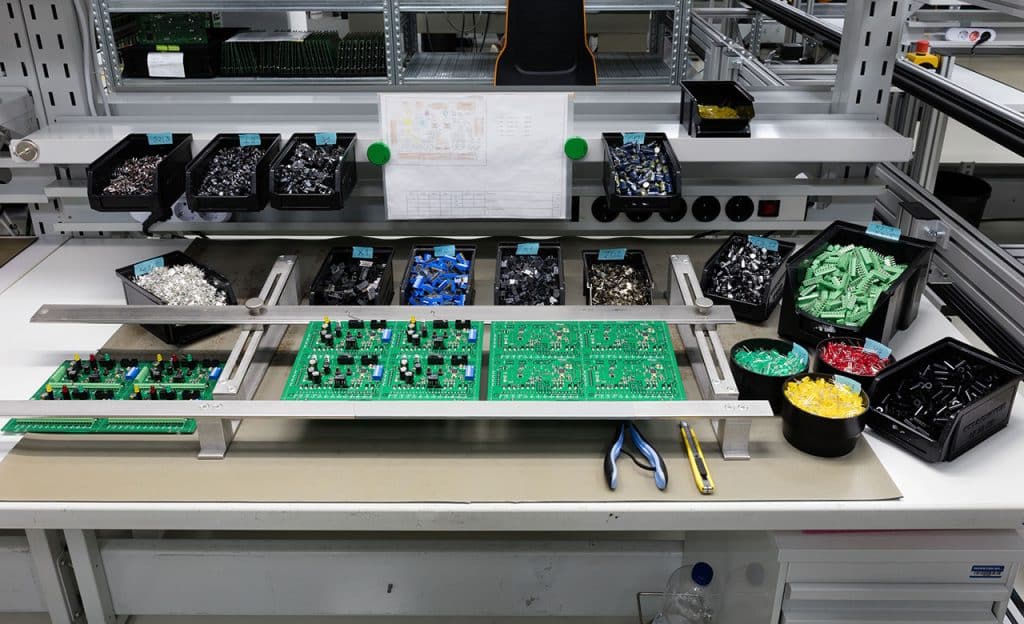

THT PCB Assembly
THT PCB Assembly

Depending on the product’s design and requirements, a combination of SMT and through-hole assembly techniques may be employed, resulting in a mixed assembly process. This approach allows manufacturers to leverage the advantages of both technologies, optimizing board layout, component selection, and overall performance.

Understanding the PCB assembly process is crucial for accurately estimating associated costs and ensuring a smooth transition from design to production. As we delve deeper into the factors influencing PCB assembly costs, this foundational knowledge will provide the necessary context for making informed decisions.

Factors Affecting PCB Assembly Cost

Many factors influence the cost of PCB assembly, each playing a unique role in shaping the overall expenses involved. Understanding these factors is crucial for accurate cost estimation and effective budget planning. Let’s explore the key elements that impact PCB assembly costs:

  • Board Complexity and Design: The complexity of the PCB design directly correlates with the assembly cost. Factors such as the number of layers, board size, and component density significantly influence the assembly process. More intricate designs with higher layer counts, larger board sizes, and higher component densities require more advanced manufacturing techniques, specialized equipment, and increased labor, consequently driving up the assembly costs.
  • Component Types: The types of components used in a PCB design can significantly impact the assembly cost. Surface mount devices (SMDs), through-hole components, ball grid arrays (BGAs), and other advanced packaging technologies require different assembly techniques and equipment. Generally, smaller SMD components are more cost-effective to assemble compared to their through-hole counterparts. However, advanced packaging techniques like BGA assembly often demand specialized equipment and skilled labor, increasing the overall cost.
  • Assembly Technology: The assembly technology employed plays a pivotal role in determining the associated costs. SMT assembly, which involves mounting components directly onto the PCB surface, is generally more cost-effective than through-hole assembly, particularly for high-volume production runs. However, through-hole assembly may be preferred for specific applications that require robust mechanical connections or higher power handling capabilities, albeit at a higher cost.
  • Order Quantity: The economies of scale significantly impact PCB assembly costs. Larger order quantities typically result in lower per-unit costs due to the efficiency gains and optimized production processes. Conversely, smaller order quantities or prototyping runs often incur higher per-unit costs due to setup fees and reduced economies of scale.
  • Turnaround Time: The urgency of the project can also influence the PCB assembly cost. Standard lead times allow for optimized production schedules and cost-effective manufacturing processes. However, expedited services or rush orders may incur additional fees to accommodate the accelerated turnaround time, impacting the overall assembly cost.

By understanding these key factors, manufacturers can make informed decisions regarding design choices, component selection, assembly techniques, and production volumes, ultimately optimizing their PCB assembly costs while meeting their product requirements and quality standards.

Average PCB Assembly Pricing

While PCB assembly costs can vary significantly based on the factors discussed previously, it’s helpful to understand typical pricing ranges. This section aims to provide an overview of average PCB assembly pricing to help you set realistic expectations and budget more effectively.

It’s important to note that these are approximate figures, and actual costs may differ based on specific project requirements, component types, assembly technologies, and other variables. Nevertheless, the following table can serve as a useful reference point:

Assembly TypeTypical Price Range (Per Panel)
SMT Assembly$50 – $500
Through-Hole Assembly$100 – $1,000
Mixed Assembly (SMT + Through-Hole)$150 – $1,500

The pricing ranges mentioned above are based on common industry practices and assume standard lead times and order quantities. It’s important to note that these figures are subject to change based on market conditions, component availability, and other factors.

Cost and Price of SMT Assembly

SMT assembly is generally more cost-effective compared to through-hole assembly, especially for high-volume production runs. The typical pricing range for SMT assembly can vary from $50 to $500 per panel, depending on factors such as component density, board complexity, and order quantity.

Cost and Price of Through-Hole Assembly

Due to the additional labor and processes involved, through-hole assembly tends to be more expensive than SMT assembly. The average pricing for through-hole assembly can range from $100 to $1,000 per panel, with higher costs associated with more complex designs and smaller order quantities.

Cost and Price of Mixed Assembly (SMT + Through-Hole)

Many electronic products require a combination of SMT and through-hole components, resulting in a mixed assembly process. The pricing for mixed assembly typically falls between $150 and $1,500 per panel, depending on the specific requirements and the ratio of SMT to through-hole components.

It’s crucial to remember that these pricing ranges are approximate and can vary significantly depending on the specific project requirements, vendor capabilities, and location. To obtain accurate pricing for your PCB assembly project, it’s recommended to request quotes from reputable PCB assembly vendors, providing detailed specifications and requirements.

By understanding these average pricing ranges, you can better evaluate the cost implications of different assembly techniques and make informed decisions that align with your budget and project goals.

Choosing the Right PCB Assembly Manufacturer

While understanding the factors that influence PCB assembly costs is crucial, partnering with the right PCB assembly vendor can make a significant difference in ensuring cost-effectiveness, quality, and timely delivery. Selecting a reliable and experienced PCB assembly manufacturer is a strategic decision that can have far-reaching implications for your business’s success.

When evaluating potential PCB assembly vendors, consider the following key factors:

  1. Quality and Reliability: Look for vendors with a proven track record of delivering high-quality PCB assemblies consistently. Prioritize those with stringent quality control measures, adherence to industry standards (e.g., IPC standards), and certifications such as ISO 9001. A commitment to quality can save you from costly rework, repairs, and potential product failures down the line.
  2. Experience and Expertise: Choose a PCB assembly manufacturer with extensive experience in your industry or product domain. Their expertise can help navigate complex design challenges, suggest cost-saving measures, and provide valuable insights into optimizing the assembly process for your specific requirements.
  3. Communication and Responsiveness: Effective communication is key to ensuring a seamless assembly process. Look for vendors that prioritize clear and timely communication, keeping you informed at every stage of the project. Responsive customer support can help address any concerns or issues promptly, minimizing delays and potential setbacks.
  4. Turnaround Times and Flexibility: Consider vendors that can accommodate your desired turnaround times, whether you require standard lead times or expedited services. Additionally, look for flexibility in handling design changes, component sourcing, and order adjustments, as these factors can impact costs and timelines.
  5. Capabilities and Technologies: Evaluate the vendor’s capabilities in terms of assembly technologies (e.g., SMT, through-hole, mixed assembly), component handling (e.g., BGA, micro-components), and specialized processes (e.g., conformal coating, potting). Aligning their capabilities with your product requirements can ensure cost-effective and efficient assembly.
  6. Pricing and Cost Transparency: While cost should not be the sole deciding factor, it is essential to understand the vendor’s pricing structure and ensure transparency in their quotations. Look for vendors that provide detailed breakdowns of costs, allowing you to make informed decisions and optimize expenses.

By carefully considering these factors and conducting thorough due diligence, you can identify a PCB assembly partner that not only meets your cost objectives but also delivers high-quality products, reliable support, and a collaborative working relationship.

At JHYPCB, we pride ourselves on being a trusted and cost-effective PCB assembly solution provider. With our state-of-the-art facilities, experienced team, and commitment to quality, we strive to deliver exceptional value to our customers while ensuring competitive pricing and uncompromising standards.

FAQs on PCB Assembly Cost

The main factors influencing PCB assembly costs include:

  • Board complexity and design (number of layers, size, component density)
  • Types of components used (SMT, through-hole, BGAs, etc.)
  • Assembly technology (SMT, through-hole, mixed assembly)
  • Order quantity (economies of scale)
  • Lead time requirements (standard vs. expedited)

Generally, SMT assembly is more cost-effective, especially for high-volume production runs. Through-hole assembly tends to be more expensive due to the increased manual labor involved.

Large order quantities typically enjoy lower per-unit costs due to economies of scale. Smaller orders or prototyping runs incur higher per-unit costs due to factors such as:

  • Setup fees
  • Reduced efficiency
  • Lack of economies of scale

Rush orders or expedited services usually incur additional costs ranging from 10-30%, depending on the lead time required and the manufacturer’s policies. These extra costs may cover:

  • Overtime labor
  • Expedited shipping/logistics

When selecting a PCB assembly vendor, consider factors such as:

  • Quality assurance capabilities
  • Manufacturing experience and expertise
  • Communication and responsiveness
  • Technical capabilities
  • Cost transparency

As an experienced PCB manufacturer, JHYPCB offers reliable and cost-effective PCB assembly services. Our advantages include:

  • Advanced production facilities
  • Stringent quality control systems
  • Extensive technical expertise
  • Robust manufacturing processes

PCB board assembly prices can vary widely, ranging from $5 to $50 per board. This depends on factors such as:

  • Complexity and design
  • Order volume
  • Automation levels
  • Geographic location
  • Labor costs Simpler boards in high volumes may cost between $2 and $10, but quality should be a key consideration.

PCB assembly accounts for 30% to 60% of the total production cost for electronics products. While the bill of materials (BOM) for simple products may only represent around 10% of the product price, more complex boards with intricate designs and materials can drive up assembly labor and costs significantly, increasing the overall percentage.

While PCB assembly costs can add up, there are several strategies you can employ to optimize expenses:

  • Design for Manufacturing (DFM): Collaborate with your assembly vendor early in the design phase to optimize the board layout, component selection, and assembly process. DFM practices can significantly reduce assembly complexities and costs.
  • Choose the Right Assembly Technology: Carefully evaluate your product requirements and select the most cost-effective assembly technology. For example, SMT assembly is generally more economical than through-hole assembly for high-volume production runs.
  • Consolidate Components: Minimize the number of unique components used in your design, as this can simplify procurement, inventory management, and assembly processes.
  • Order in Volume: Take advantage of economies of scale by placing larger order quantities, which can reduce per-unit costs considerably.
  • Optimize Board Design: Streamline your board design by minimizing layers, reducing component density, and avoiding complex features that can drive up assembly costs.
  • Partner with an Experienced Vendor: Work with a reliable and experienced PCB assembly partner who can provide cost-saving recommendations, efficient processes, and competitive pricing.
  • Consider Offshore Manufacturing: Depending on your location and production volumes, exploring offshore manufacturing options in regions with lower labor costs can potentially reduce overall assembly expenses.

By implementing these strategies and working closely with your PCB assembly vendor, you can maximize cost savings without compromising on quality or performance.

The PCBA process typically involves the following steps:

  • Solder paste printing
  • Surface Mount Technology
  • Reflow soldering
  • Automated Optical Inspection
  • Through-Hole Technology
  • Wave soldering
  • Touch-up and cleaning
  • IC programming
  • Functional testing
  • Age testing

These steps ensure that all components are properly mounted, soldered, and functioning as intended before the assembled PCBs are shipped to customers or integrated into final products.

Conclusion

Understanding PCB assembly costs is crucial for manufacturers to optimize their budgets and stay competitive in the ever-evolving electronics industry. Businesses can make informed decisions that align with their product requirements and financial objectives by grasping the various factors that influence these costs, such as board complexity, component types, assembly technologies, order quantities, and turnaround times.

Choosing the right PCB assembly partner is equally important. A reliable and experienced vendor can ensure high-quality assemblies and provide valuable insights, cost-saving measures, and seamless communication throughout the process.

At JHYPCB, we strive to be your trusted PCB assembly solution provider, offering cost-effective services without compromising on quality or standards. Our commitment to excellence, state-of-the-art facilities, and experienced team make us an ideal partner for your PCB assembly needs.

Whether you’re a seasoned professional or just starting your journey in electronics manufacturing, mastering the art of PCB assembly cost optimization is key to achieving success. Embrace the knowledge shared in this guide, and don’t hesitate to reach out to JHYPCB for further assistance or inquiries. Together, we can unlock the true potential of cost-effective PCB manufacturing.

Related Posts

About Me

JHYPCB is a leading PCB prototyping, PCB manufacturing and assembly service provider in China, offering quick turn PCB prototyping, multi-layer PCB manufacturing and turnkey PCB assembly services.

Recent Posts

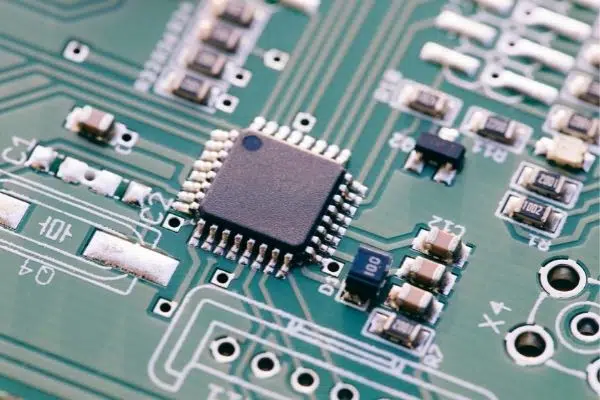

PCB assembly service
