Custom PCB Fabrication and Assembly
JHY is a well-known PCB manufacturer in China, specializing in custom PCB printing, manufacturing, and assembly, including custom PCB prototypes to low volume, mass production. We can meet your quality and cost requirements with high-level custom PCB manufacturing capabilities and competitive prices.
Custom Circuit Board Printing and Assembly Services

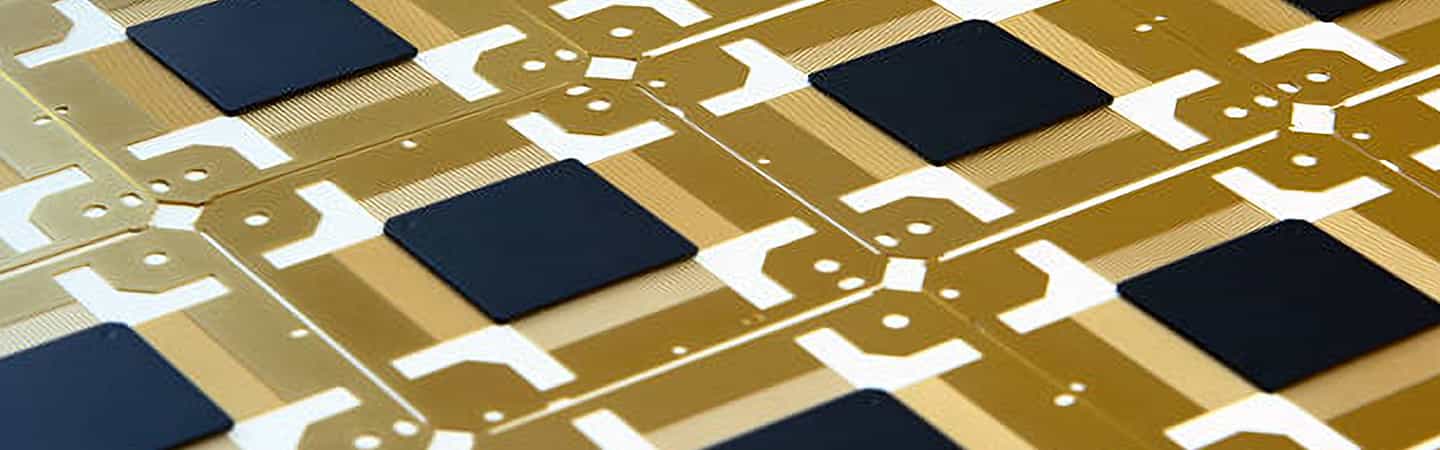

Custom PCB Manufacturing
Custom PCB Manufacturer
JHYPCB is one of the largest custom PCB manufacturers in China. We understand the need for custom circuit boards, as these are the basis of product improvement and innovation. Sometimes, the project needs something different and exceptional, so you need 100% customized PCBs. We are fully capable of creating any custom PCBs according to your requirements. We do things every day that others can’t. You can contact us with your custom circuit board requirements, and we will ensure the best performance, high-quality, and on-time delivery.

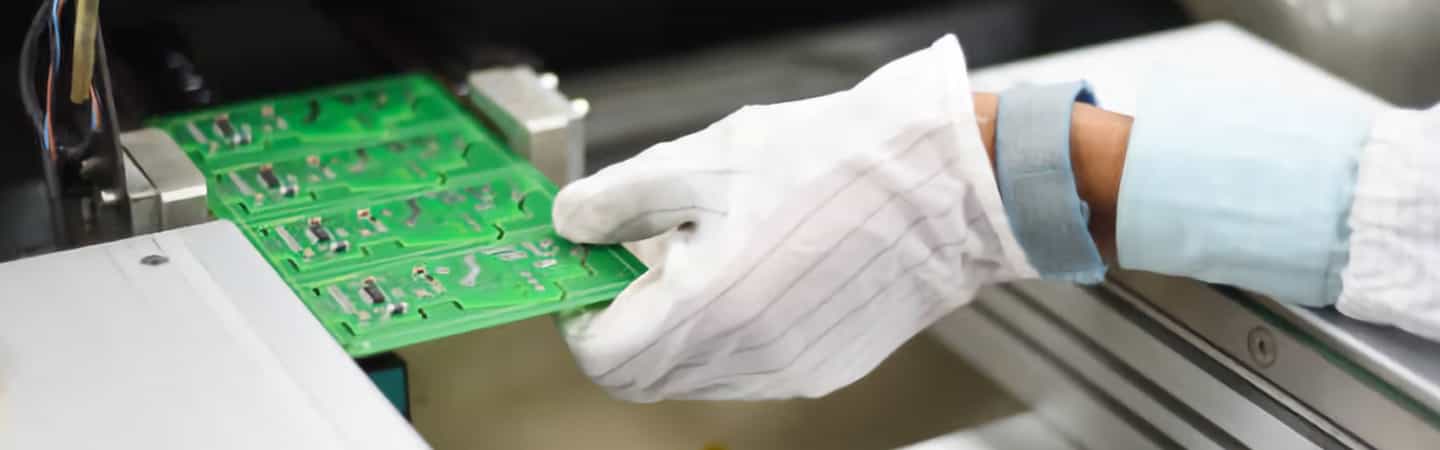

Custom Circuit Board Printing
Why Do You Need a Custom Circuit Board?
When beginners talk about making a simple circuit, they always talk about PCB breadboards. But the PCB breadboard is not long-lasting, and you can see the wires lying around your circuit. Any wire can be disconnected at any time. So, for a permanent project or circuit, you need a board that is reliable and long-lasting. Moreover, when there is no custom circuit board, the circuit looks like a complete mess. The wires around it take more space and offer less reliability.
Fortunately, you can solve all these problems using a custom circuit board (PCB). A PCB is quite compact as there are no wires to connect the components, and it is more reliable than an open circuit. No matter how complex your circuit is, the PCB can accommodate everything in a little space while ensuring long life, durability, cleanliness, and reliability.
Although people consider it very difficult to design and fabricate a PCB, it is not that difficult. You might face some design issues or revisions, but in the end, you will have something more useful and beneficial. At JHYPCB, we make the process of custom PCB boards simple and easy. We stand behind our customers and help them achieve what they are looking for. We can help them to find the errors and make revisions without any hassle.
Custom PCB Prototype Service
JHY can provide competitive prices for custom PCB prototyping services, low-volume PCB manufacturing, and assembly services.
Our custom PCB manufacturing capabilities include the following:
- Buried & Blind Via PCB
- Singe and Double-sided to Multilayer PCB
- Complex Multilayer PCBs (up to 64 layers)
- PCB Thickness: 0.10-8.0mm
- Rogers PCB, Flexible PCB, HDI PCB, High Tg PCB, Rigid-Flex PCB, High-Frequency PCB…
- PCB Size: 609 * 889 mm (Rigid PCB)
- Surface Finish: OSP, HASL, Immersion Gold/Tin/Silver, Flash Gold, Plating Gold
- Learn More
Quick Turn Custom PCB Fabrication Service
In the past 12 years, JHY has provided high-quality quick turn custom PCB fabrication and assembly services to nearly 1,000 customers from more than 30 countries around the world. We have the highest quality standards and on-time delivery rates in the industry. At present, many engineers, designers and R&D institutions rely on our quick turn custom PCB fabrication and assembly service, and we understand the importance of commitment, so we have high satisfaction from customers.
Click here to learn more about our Quick Turn PCB Fabrication Services.
Custom Complex Multilayer PCB Fabrication Service
JHY can manufacture single-layer PCB, double-sided PCB, and complex multi-layer printed circuit boards up to 64 layers, with a maximum support of 609*889mm. Irrespective of the complexity of your design, the number of layers, materials, and more, you can count on us to offer you superior circuit boards.

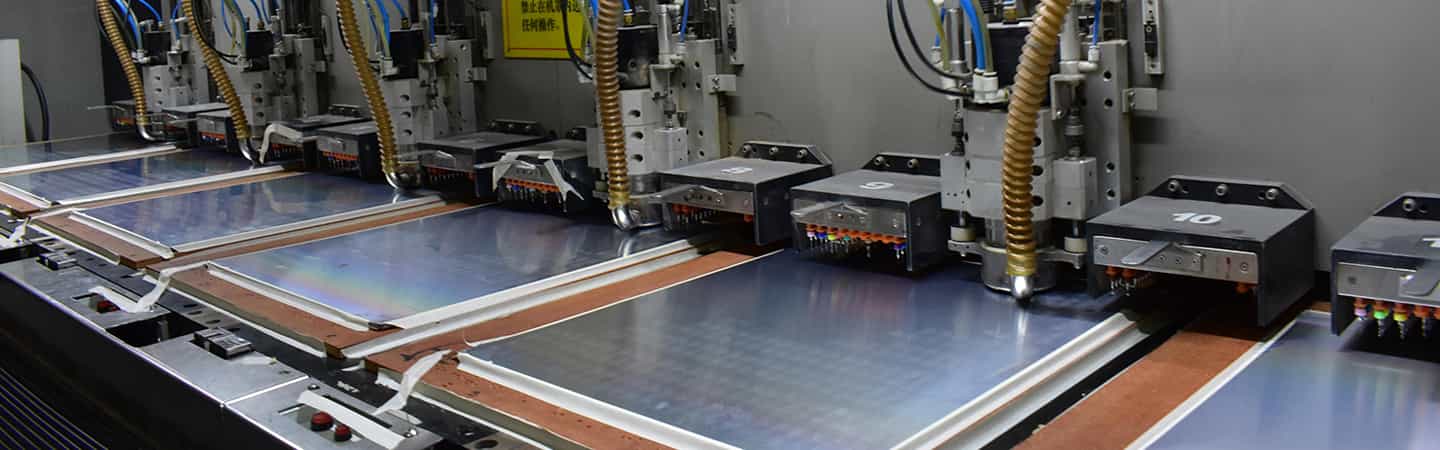

Custom Printed Circuit Board Manufacturer
Why PCB Manufacturers?
Custom printed PCB manufacturers are professionals that know how to build a custom circuit board. The reason you need to go to PCB manufacturers is that they are quick and perfect in their work. Even multi-layer PCBs are easy for them to make. They have the latest technology in their facilities that can handle any type of custom PCB you are looking for.
Some people think about creating a simple PCB at home through primitive methods. However, it is neither reliable nor long-lasting. You can only make a single or double-layer PCB with no surface finish and other advanced technologies. There is no comparison between a homemade PCB or a custom PCB made by manufacturers. The PCB created by professionals involves the latest technology, whether you talk about drilling, surface finish, lamination, or anything else.
PCB design, fabrication, assembly, and testing are done under supervision. With PCB manufacturers, there is nothing to worry about the working of the circuit as long as your schematic is correct. Custom printed PCB manufacturers have excellent PCB fabrication capabilities and can make your complex custom circuit board with ease.
JHYPCB has offered more ease to the customers. You can even order one PCB, so beginners, startups, and new companies can take benefits from this facility. You can order one PCB prototype and then check its functionality. We offer quick-turn custom PCB printing services; therefore, you can have multiple revisions in a short time. We are ready to deal with any complex custom circuit board as our experts know how to deal with these PCBs. We take complex PCBs as a challenge, and our experts ensure the best performance of the PCBs.
Custom PCBA Manufacturer

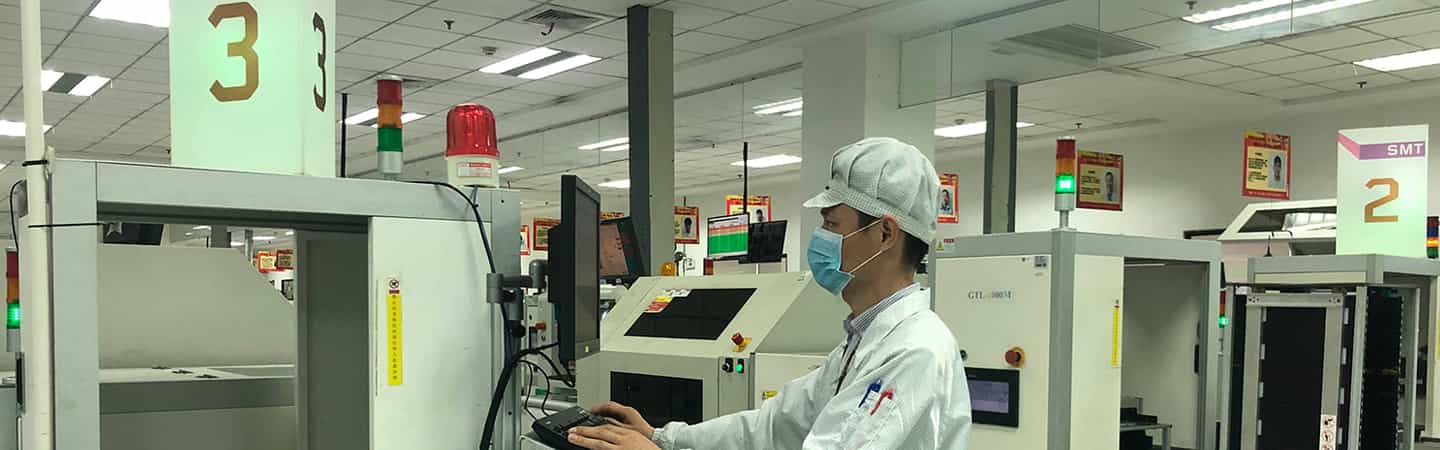

Custom PCB Board Assembly
Often customers need a complete PCB assembly rather than a bare board. The component mounting that is done without the help of PCB manufacturers has reliability issues, and it is not as accurate and perfect as done by machines. It also requires a lot of time because people mount the components manually.
PCB Assembly service providers, like JHYPCB, have completely automated machines that take care of everything. From component procurement to the final PCB testing, everything is done under one roof and in a strict quality management system. The components are obtained from reliable vendors, and if any component is unavailable, it is replaced by a similar component on the demand of the customer.
The most important thing in custom PCB assembly is DFM checking. Usually, designers do not understand the nitty-gritty of the manufacturing process. Therefore, there can be different issues that can delay the final delivery. But DFM checking makes everything perfect. The experts check the PCB design and ensure everything is according to the manufacturing process. If there are errors and issues in the design, the experts propose a better solution. Thus, timely delivery is ensured. At JHYPCB, we offer DFM checking for free.
We have fully automated machines to place the components on the board and solder them through modern processes. SMD or through-hole components can be placed and soldered quickly. Another important thing after creating PCB assembly is testing. At JHYPCB, we offer all the latest testing technologies, including AOI and X-ray inspection. Therefore, the final PCB assemblies have no errors.
JHYPCB is capable of creating any type of custom PCB assembly, including rigid-flex PCB, flexible PCB, aluminum PCB, High-Tg PCB, high-frequency PCB, and HDI PCB. Everything is available under one roof.
Custom PCB Cost
Custom PCB Board and Assembly Cost
The cost of a Custom PCB board depends on various factors. Every customer requires a certain PCB size, number of layers, copper thickness, surface finish, drilling technology, impedance control, and many other things. All these factors affect the price of the final PCB. The same is the case with PCB assembly. The technology, components, testing, and everything represent the final cost. However, you don’t need to worry about anything as we can provide a quote according to your requirements. You only need to contact us and provide the relevant details. Our customer services team will give you a reasonable quote.
We offer the lowest price in the industry, as JHYPCB is a large facility, and everything is done under one roof. Our state-of-the-art and modern equipment make the process fast and more reliable. We deal with small-large volume orders without any minimum order restriction. You can buy any PCB or PCBA at the cheapest rates.
How to Quote and Order Custom PCB Fabrication and Assembly Service?
Those in printed circuit board manufacturing and assembly are no strangers to Gerber and BOM. Gerber files are computer-aided design files sent to PCB manufacturers and are essential for manufacturing PCBs.
In short, a Gerber file is an image of the PCB that showcases every individual layer as they appear throughout the circuit design. They include images of copper layers, legend, solder mask, and route data that simplify viewing how the PCB requires fabrication.
Gerber files come into play after completing the layout design of PCBs, and PCB manufacturers use such data.
When you send your Gerber files to a PCB manufacturer of your choice, they can print out the circuit board. Printing out your circuit board becomes the basis for manufacturing up even further.
BOM, and Bill of Material, is one of the essential files for PCB assembly inquiry and order. The detailed information on the parts required for PCB assembly is listed in the BOM, including Item Number, Quantity, Description, Manufacturer Part/Item Number, Installation Status of the Components, Reference Numbers/designators of the Components, Manufacturer’s Name, Package Type, Alternate Part Number, etc.
Instructions on the files required for custom PCB fabrication and assembly can be found here.
As you know, JHY, a leading PCB manufacturing and assembly service supplier in China, has rich experience in custom PCB manufacturing and assembly. You just need to send Gerber, BOM, and other information to sales@pcbjhy.com, and the rest Leave it to us.
FAQs for Custom PCB Fabrication
PCB fabrication or PCB manufacturing is the process of transcribing a printed circuit board design onto the physical structure of the board. By the way, PCB assembly is the process of placing components onto the board to make it functional.
JHY is a leading PCB manufacturer and supplier in China. We have complete in-house capabilities and specialize in quick-turn, high-quality PCB manufacturing and assembly services. We offer rapid and on-time delivery at competitive prices. We assure you of guaranteed quality satisfaction by following a client-centric approach. There is no minimum order requirement as well.
You need to provide the following files for custom PCB fabrication:
- PCB Gerber File – The Gerber file format is the standard for PCB fabrication. This standard file describes the PCB layers like solder masks, copper layers, etc. You can go for either .zip or .rar for inquiries or orders.
- Drill File in Excellon format
- Board Outline File – For routing the board edges, it has only the board’s outline, including any inner cut-outs.
- panelization files
The overall cost depends on the complexity of the design and manufacturing of the printed circuit board. The number of layers, the type of materials, the manual labor work hours, required efforts, and the fabrication time is all considered for the overall cost calculation.
The turnaround time usually depends on the production quantity and difficulty factor. Another factor that needs to be considered is the ready availability of the raw materials.
