PCB Manufacturing Capabilities
The continuous upgrading of the process manufacturing capacity is our most competitive advantage. The upgrading of manufacturing capacity also means providing customers with the most advanced production technologies and reducing costs for customers.
Lean More about PCB Fabrication Process
technical Capabilities
Full Technical Capabilities of Our All Types of PCB Manufacturing and SMT Assembly Services

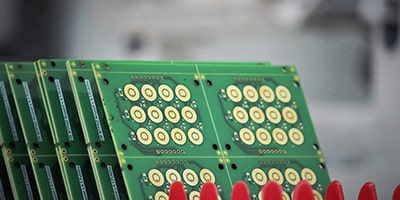

- Layers: 1-30
- MOQ: 1 pcs
- Materials: FR4, Aluminum, etc.
- Laminate: Shengyi, Isola, etc.
- Thickness: 0.1-8.0mm
- Max Size: 533.4 * 762mm
- Lead Time: 24 Hours – 9WD
- Types: LED PCB, HDI PCB, Flexible PCB, Rigid-flex PCB, High Tg PCB, etc.

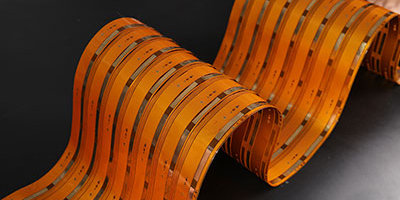

- Layers: 1-10
- MOQ: 1 pcs
- Laminate: Dupont PI, Shengyi PI
- Minimum Hole Size: 0.1mm
- Thickness: 0.05mm+/-0.02mm
- Max Size: 480*4000mm
- Panelization Size: 250*510mm
- Lead Time: 24 Hours – 9WD
- Solder Mask Color: Green, White, Blue, Black, Red, Yellow, etc.

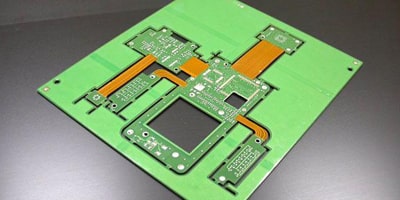

- Layers: 1-12
- Laminate: Dupont PI, Halogen Free
- Thickness: 0.20 – 5.50 mm
- Max Size: 610X640mm
- Impedance Control: +/-10%
- Surface Finish: HASL(LF), ENIG, Immersion Tin/Silver
- Solder Mask Color: Green, White, Blue, Black, Red, Yellow, etc.

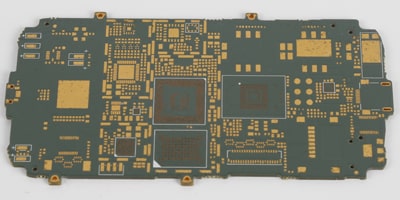

- Layers: 4-24 layer
- MOQ: 1 pcs
- HDI Structures: 1+N+1, 2+N+2, 3+N+3
- Quality Grade: Standard IPC 2
- Build Time: 2 days – 5 weeks
- Material: FR4 standard Tg 140°C | FR4 High Tg 170°C, etc.
- Board Size: Min 6*6mm | Max 457*610mm
- Board Thickness: 0.4mm – 3.0mm

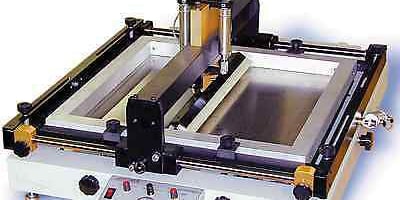

- Technology: 100% laser cut
- Types: Framed, Frameless, Electroformed, Nano Coating
- Material Used: Stainless Steel
- Stencil Thickness: 0.06 ~ 0.3 mm
- Minimum Cut Width: 0.05 mm
- Maximum Size: 736 X736 mm
- Aperture Tolerance: within 0.007mm
- Allow for Fiducial Data: Yes
- Allow for Panelized Data: Yes
- Delivery: 1 ~2 Day

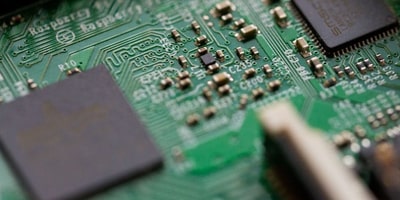

- PCB Types: Rigid PCB, Flexible PCB, Rigid-flex PCB, Multilayer PCB, etc.
- PCB Size: 50*50mm – 774*710mm
- Material: Rigid | Metal Core | FPC
- PCB Shape: Any
- Quantity: From Prototype to Big Volume, No MOQ
- Assembly Services Types: Quick Turn and Fast Prototype PCB Assembly, Turnkey Service
