What is Rigid-Flex PCB?
Rigid-flex circuit board combines the best of both rigid circuits and flexible circuits integrated into one circuit. The two-in-one circuit is interconnected through plated through holes (PTH). Rigid-flex PCB provides higher component density and more convenient installation. Rigid-flex PCB boards enable flexible assembly in complex three-dimensional spaces.
What are the features of rigid-flex PCB stackup?
Due to the particularity of the stacking design of the rigid-flex PCB board, it has different characteristics and advantages from rigid PCBs and flexible PCBs, such as:
- Fewer solder joints and connectors
- Thinner board thickness
- better thermal performance
- high aspect ratio
The types of rigid-flex PCB stackup
Like many other types of printed circuit boards, the stacking methods of rigid-flex PCB boards are also divided into single-sided rigid-flex boards, double-sided rigid-flex boards, and multi-layer rigid-flex boards.

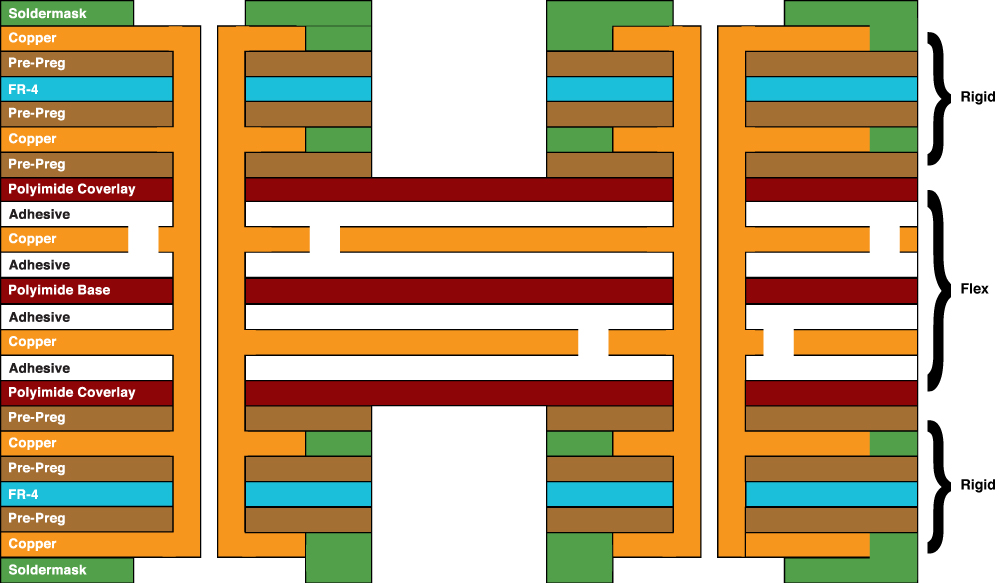

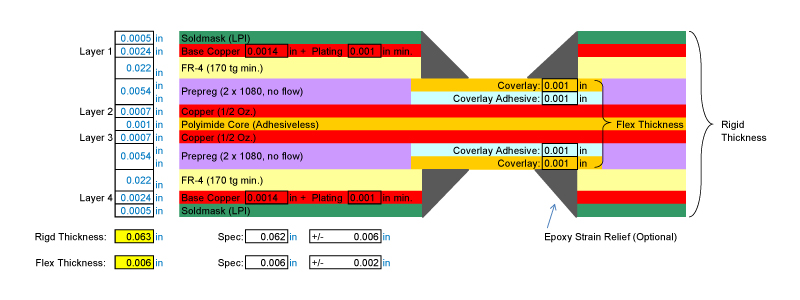

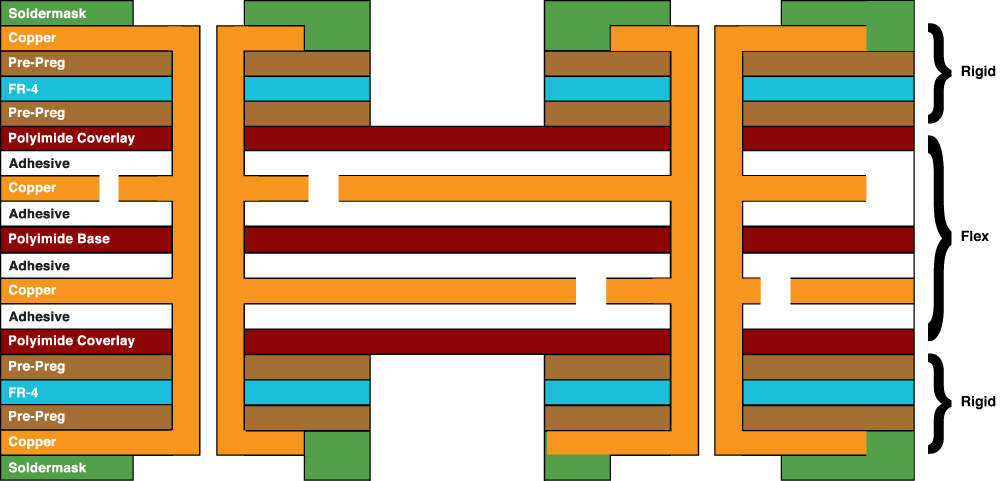

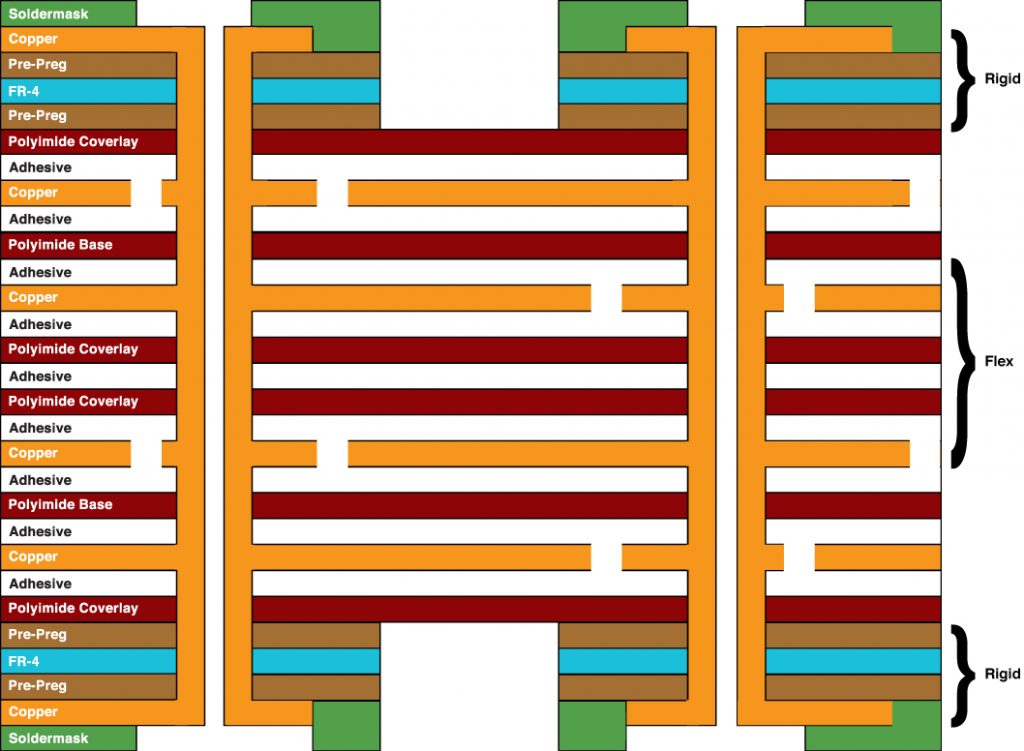

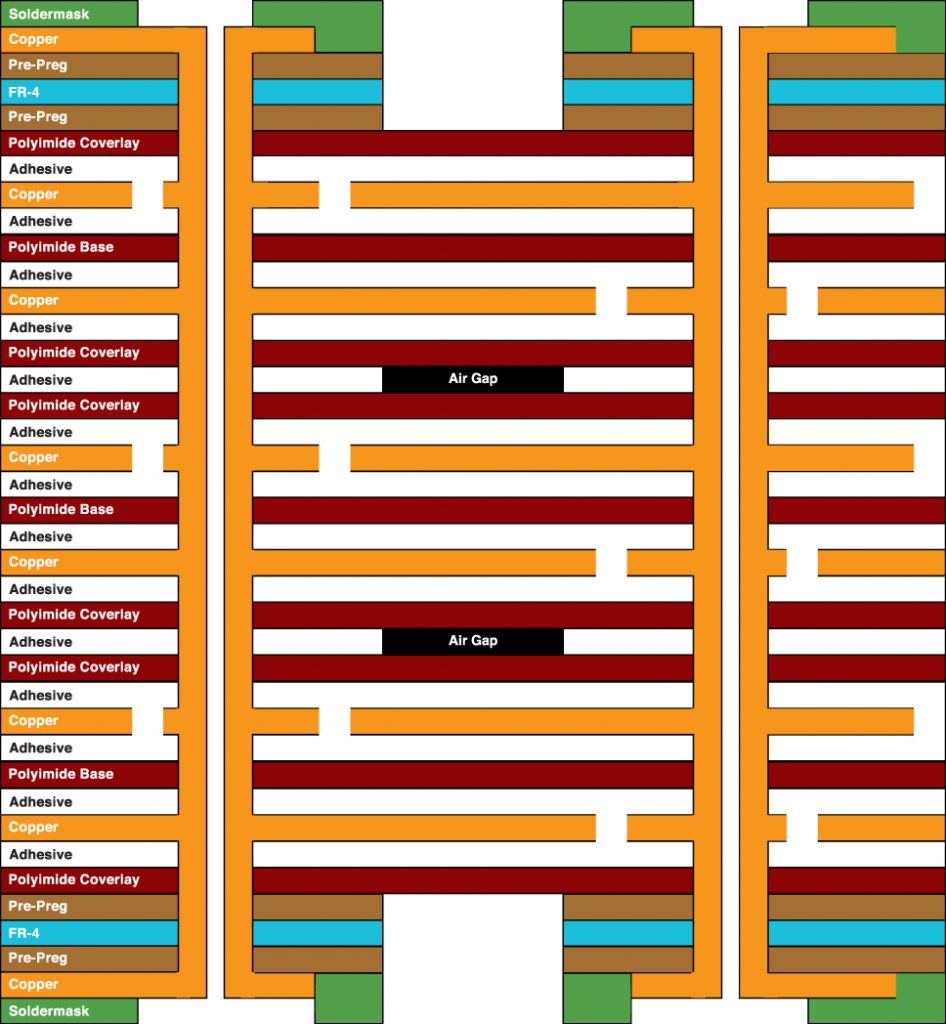

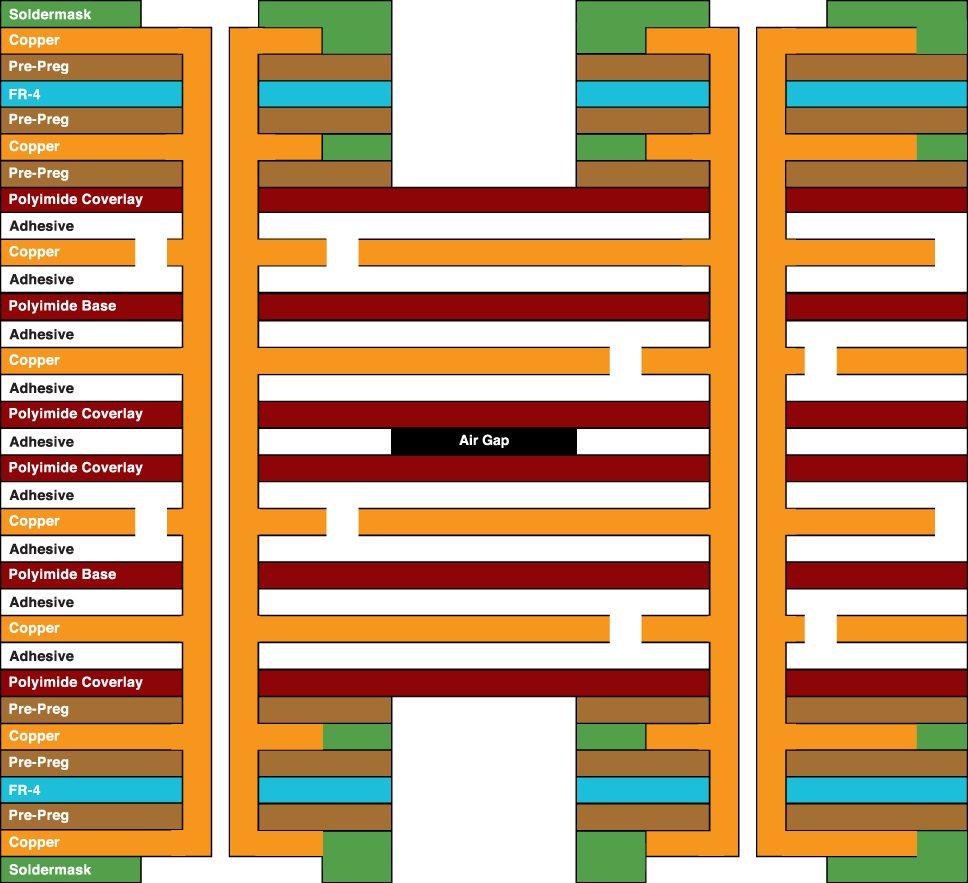

Rigid-Flex Stackup Example
Rigid-Flex Board Stackup Design Guidelines and Helpful Resources
