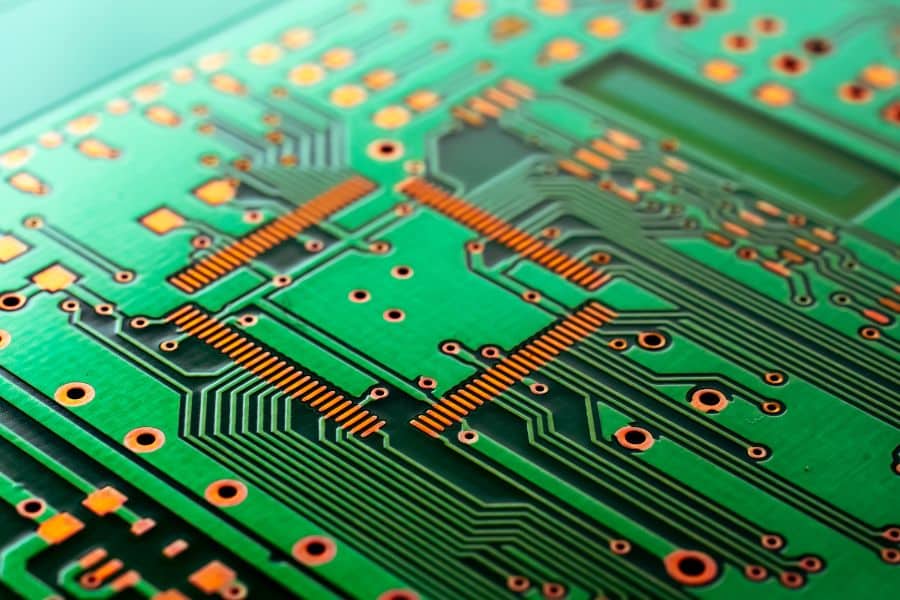

In today’s electronics industry, custom PCBs are the backbone of virtually every electronic device – from smartphones and computers to industrial equipment and medical devices. As technology advances, the demand for custom PCB designs continues to soar, catering to unique product requirements and specifications.
However, one of the most critical considerations when opting for custom PCBs is the cost factor. The cost of custom PCB boards can vary significantly depending on several key elements. Understanding these cost-determining factors is crucial for businesses and individuals alike to make informed decisions and effectively manage their budgets for custom PCB design and manufacturing.
So, what are the primary factors that influence the cost of custom PCBs? In this comprehensive guide, we’ll explore the key determinants that impact the cost of a custom PCB, including material selection, layer count, board size, production volume, manufacturing processes, and more. By understanding these cost drivers, you’ll be better equipped to navigate the custom PCB design cost landscape and optimize your expenses.
Major Factors Determining Custom PCB Cost
When it comes to the cost of custom PCBs, several crucial elements come into play. These factors can significantly impact the overall custom PCB board cost and must be carefully considered during the design and manufacturing phases. Let’s delve into the major determinants that influence the cost of your custom PCB project.
- PCB Base Material
The base material or substrate used for the PCB plays a vital role in determining its cost. Common options include FR-4, which is a cost-effective choice for general applications, and more advanced materials like Rogers or Polyimide for high-frequency or specialized applications. The choice of material directly affects the overall custom PCB cost. - Number of Layers
The layer count of a PCB significantly impacts its complexity and, consequently, its cost. Simple single or double-layer boards are more economical, while multi-layer boards with intricate layer stackups demand higher manufacturing costs due to increased complexity. - Board Size and Dimensions
The physical dimensions of a custom PCB board directly influence its cost. Larger boards generally cost more due to increased material requirements and manufacturing challenges associated with maintaining precision over larger areas. - Production Volume
Economies of scale play a crucial role in determining custom PCB pricing. Higher production volumes often result in lower unit costs due to reduced setup costs and optimized manufacturing processes. Conversely, low-volume or prototype runs tend to be more expensive on a per-unit basis. - Manufacturing Processes
The specific manufacturing processes required for your custom PCB can significantly impact the overall cost. Complex processes like heavy copper plating, controlled impedance traces, or specialized surface finishes often demand higher prices than standard manufacturing techniques. - Minimum Trace Width and Spacing
The ability to achieve finer trace widths and smaller trace-to-trace gaps directly affects the complexity and cost of the PCB manufacturing process. Boards with tighter tolerances and higher density typically command higher prices.
By understanding and carefully considering these major cost factors, you can make informed decisions regarding your custom PCB design and manufacturing strategy, optimizing both performance and cost-effectiveness for your unique project requirements.
The cost of different types of PCB materials
PCB Base Material The base material or substrate used for the PCB plays a vital role in determining its cost. Common options include:
FR-4: This woven glass-reinforced epoxy laminate is the most widely used and cost-effective option, with prices typically ranging from $1 to $10 per square foot depending on thickness and quality.
Rogers: A high-performance ceramic-filled PTFE substrate suitable for high-frequency applications like wireless communications. Rogers materials are more expensive, costing $20 to $50 per square foot.
Aluminum: Metal-based with excellent thermal conductivity, aluminum PCBs are used in high-power applications. Their cost is higher than FR-4, around $10 to $20 per square foot.
Polyimide: This flexible film substrate allows PCBs to be bent or shaped, with costs from $5 to $20 per square foot based on thickness and quality.
Ceramic: An extremely high-performance and high-temperature resistant material, ceramic PCBs demand a premium price of $50 to $200 per square foot.
The choice of material directly affects the overall custom PCB cost, with higher-end substrates like Rogers, aluminum, and ceramic commanding significantly higher prices compared to the industry-standard FR-4.
By integrating these material cost details, readers better understand how the PCB base material selection can impact their custom PCB project expenses.
Calculate Custom PCB Board Cost by Size
One of the most straightforward methods for calculating the cost of custom PCBs, especially for small batches and prototypes, is the area-based pricing approach. This technique allows PCB manufacturers to provide a cost estimate based on the physical dimensions of the board, offering a quick and convenient way to obtain custom PCB pricing.
- How Area-Based Pricing Works
In this pricing model, the PCB manufacturer determines a unit price per square centimeter (or inch) based on the number of layers and specific manufacturing processes required. Customers simply need to provide the board dimensions, and the total cost is calculated by multiplying the area by the predetermined unit price.
For example, if the manufacturer’s price for a 4-layer board is $0.05 per square centimeter, and your custom PCB measures 10cm x 15cm, the estimated cost would be:
Board Area = 10cm x 15cm = 150 sq.cm Custom PCB Cost = 150 sq.cm x $0.05/sq.cm = $7.50
- Ideal for Prototyping and Low Volumes
The area-based pricing approach is particularly well-suited for prototyping and low-volume custom PCB orders. It offers a straightforward and accessible way to obtain cost estimates quickly, without the need for detailed design specifications or a complex quoting process. - Advantages and Limitations Advantages:
- Simple and easy to calculate
- Quick turnaround for cost estimates
- Suitable for a wide range of custom PCB designs
Limitations:
- May not accurately reflect the true manufacturing costs for complex boards
- Potential for cost discrepancies with higher production volumes
- Limited consideration for specific design requirements or advanced manufacturing processes
While the area-based pricing method provides a convenient starting point for estimating custom PCB board costs, it is essential to consult with your PCB manufacturer for more accurate quotes, especially for larger production runs or boards with intricate design requirements.
Calculate Cost of Custom PCB Based on Detailed Costs
For high-volume custom PCB orders or boards with complex design requirements, a more detailed cost calculation approach is often necessary. This method takes into account various factors beyond just the board size, providing a more accurate estimate of the true manufacturing costs involved.
- The Detailed Cost Calculation Process
In this pricing model, PCB manufacturers consider a range of elements that contribute to the overall cost of the custom PCB project. These factors include:
- Raw Material Costs: The type and quantity of base materials (e.g., copper-clad laminates) required for the board.
- Layer Count: The number of copper layers in the PCB stackup, which impacts complexity and processing costs.
- Manufacturing Processes: Specific processes like surface finishes, impedance control, heavy copper plating, etc.
- Drill Costs: The number, size, and complexity of holes/vias on the board.
- Tooling and Setup Costs: Expenses related to creating custom tooling or setting up production lines.
- Labor Costs: The amount of skilled labor required for the manufacturing process.
- Overhead and Profit Margins: Additional costs factored in by the manufacturer.
- Optimizing for High Production Volumes
The detailed cost calculation approach is particularly beneficial for high-volume custom PCB orders. By considering all the intricacies of the design and manufacturing process, PCB manufacturers can optimize material usage, production efficiency, and overall costs, resulting in more competitive pricing for larger quantities. - Advantages and Limitations Advantages:
- Provides a highly accurate cost estimate
- Accounts for complex design requirements and advanced manufacturing processes
- Enables cost optimization for high-volume production runs
Limitations:
- Requires detailed design specifications and a more involved quoting process
- May result in higher upfront costs for low-volume or prototype orders
- Increased complexity in cost calculations and quotation generation
While the detailed cost calculation method demands more input from both the customer and the manufacturer, it ensures a more precise understanding of the true costs involved in producing custom PCBs. This approach is particularly valuable for businesses with high-volume production needs or those requiring boards with intricate design specifications.
Online Custom PCB Design Cost Calculator
As the demand for custom PCBs continues to rise, many manufacturers have recognized the need to streamline the quotation process. Enter online PCB pricing calculators – innovative tools that empower customers to quickly estimate the cost of their custom PCB designs with just a few clicks.
- The Concept of Online PCB Pricing Calculators
These user-friendly web interfaces allow customers to input key details about their desired PCB specifications, such as board size, layer count, quantities, and any special requirements. Behind the scenes, sophisticated algorithms process this information and provide an estimated cost for the custom PCB design. - Streamlining the Custom PCB Quotation Process
Online pricing calculators offer several advantages over traditional quotation methods:
-
-
- a) Real-time Cost Estimates: Customers can instantly obtain cost estimates without the need for lengthy back-and-forth communication or waiting periods.
- b) Accessibility: These tools are available 24/7 and can be accessed from anywhere with an internet connection, facilitating a convenient and efficient quoting experience.
- c) Design Exploration: Users can easily experiment with different design parameters and quantities to understand how changes impact the overall custom PCB design cost.
-
- Advantages and Limitations Advantages:
- Saves time and resources for both customers and manufacturers
- Promotes transparency in the pricing process
- Allows for easy comparison of different design options and quantities
- Accessible from anywhere, anytime
Limitations:
- May not provide highly accurate quotes for very complex or specialized PCB designs
- Still requires verification and final quotation from the manufacturer
- Potential for user errors in inputting design specifications
Despite some limitations, online PCB pricing calculators have become invaluable tools in the industry, streamlining the quotation process and empowering customers with greater control over estimating their custom PCB design costs.
How to Reduce the Cost of Custom PCBs?
While custom PCBs offer unmatched flexibility and performance advantages, managing costs is a critical consideration, especially for budget-conscious projects. Fortunately, there are several strategies you can employ to minimize expenses without compromising on quality or functionality:
- Optimize Design for Cost-Effectiveness
- Simplify the PCB layout by reducing layer count and minimizing complexities like controlled impedance requirements.
- Increase trace widths and spacing to accommodate more economical manufacturing processes.
- Carefully consider component placement and routing to maximize material utilization and minimize waste.
- Leverage Economies of Scale
- Order higher production volumes to benefit from reduced setup costs and optimized manufacturing processes.
- Consolidate multiple designs into a single panelized production run to share setup expenses.
- Choose Cost-Effective Materials
- Opt for industry-standard FR-4 base materials instead of more expensive substrates like Rogers or ceramic when possible.
- Evaluate material trade-offs based on your application’s performance requirements and budget constraints.
- Optimize PCB Stackup and Routing
- Work closely with your PCB manufacturer to optimize the layer stackup for cost-efficiency.
- Utilize advanced routing and component placement techniques to minimize layer count and reduce material usage.
- Explore Alternative Manufacturing Processes
- Investigate cost-saving processes like subtractive manufacturing (vs. semi-additive) or alternative surface finishes.
- Avoid unnecessary specialized processes that drive up costs unless absolutely required.
- Manage Lead Times Effectively
- Plan ahead to avoid rush orders and expedited production fees associated with shorter lead times.
- Consider slightly longer lead times for cost savings on non-critical projects.
By implementing these cost-reduction strategies in collaboration with your PCB manufacturer, you can strike the right balance between performance, quality, and budget for your custom PCB projects.
FAQs on Custom PCB Cost
Yes, taking advantage of economies of scale by ordering higher PCB volumes can significantly lower the per-unit cost through reduced setup costs and optimized manufacturing processes.
Simpler PCB designs with fewer layers, wider traces/spaces, and less complicated manufacturing requirements (like no controlled impedance) tend to be more cost-effective.
Absolutely. Lower-cost materials like FR-4 can provide considerable savings compared to advanced substrates like Rogers or ceramic, if the application permits.
Yes, processes like heavy copper plating, specialized surface finishes, microvias, or high-density interconnect technology usually come at a premium price.
Shorter lead times for prototyping or rush orders typically incur additional costs due to prioritized production schedules and rushed material procurement.
Optimizing the layer stackup, trace routing, and component placement can maximize material utilization, resulting in potential cost savings through reduced waste.
The average price of a printed circuit board ranges from $0.02 to $0.05 per square inch. Dozens of factors like board size, volume, layer count, and complexity directly influence the cost per square inch. Reducing the number of components on the board can also help minimize PCB costs.
Conclusion
Determining the cost of custom PCBs is a multifaceted process influenced by various factors, from board specifications and materials to manufacturing processes and production volumes. By understanding these cost drivers, you can make informed decisions that balance performance, quality, and budget considerations for your unique PCB project.
Whether you opt for the simplicity of area-based pricing for prototypes, leverage detailed cost calculations for high-volume runs, or utilize online pricing calculators for real-time estimates, the approach you choose should align with your specific requirements.
Ultimately, collaborating with a reputable PCB manufacturer and providing detailed design specifications is crucial for obtaining accurate quotes and ensuring a smooth manufacturing process. With the right partner and a clear understanding of the cost factors, you can bring your cutting-edge custom PCB designs to life while optimizing expenses and staying ahead in the ever-evolving electronics industry.
If you’re looking for a reliable and cost-effective custom PCB manufacturing partner, consider JHYPCB. As a leading Chinese PCB manufacturer, we offer high-quality PCB prototyping, manufacturing, and assembly services at competitive prices. Contact us today to discuss your custom PCB requirements and leverage our expertise to bring your innovative designs to reality efficiently and within your budget.
